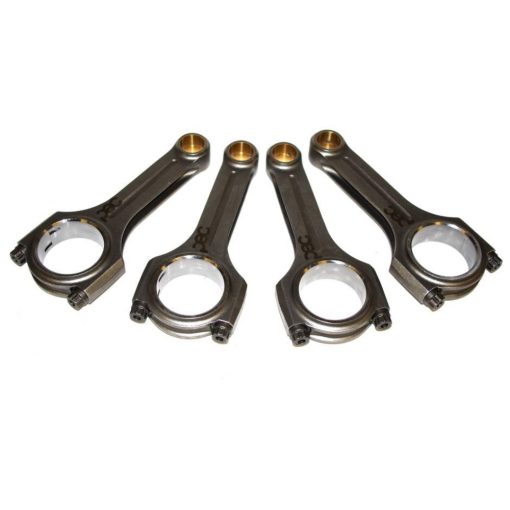

Ford Zetec Black Top 2.0 16V H-Beam Pec Steel Connecting Rod Set (PR001)

Ford Zetec Black Top 2.0 16V H-Beam PEC steel connecting rod set (PR001).
For use with Woessner Zetec pistons (will not work with STD pistons).
Part no PR84.8 = 84.80mm pistons.
Part no PR85.5 = 85.50mm pistons.
Part no PR86.0 = 86.00mm pistons.
ARP 2000 series bolts (included).

Manufactured from forgings originally produced in Sweden, pec connecting rods have offered engine builders and tuners a cost efficient and yet high performing solution to a wide variety of engine building problems.

H-beam and i-beam section connecting rods are forged from aisi 4340 (EN24) steel. Heat treated to HRC 35-38 and then shot-peened for higher fatigue strength. Small ends are bushed for a fully floating pin and big ends are fitted with high quality arp fasteners with different specification bolts available depending on the level of performance required.

Pec connecting rods have been designed, manufactured and tested to the highest levels of scrutiny before being released to the trade and the public alike and their success record speaks for itself.

Specification.
Engine type 2.0 Zetec Black Top
Con Rod Length C/C 140.80mm
Con Rod Big End Dia 50mm
Con Rod Big End Width 24.25mm
Con Rod Small End Dia 20.63mm
Con Rod Small End Width 24.25mm
