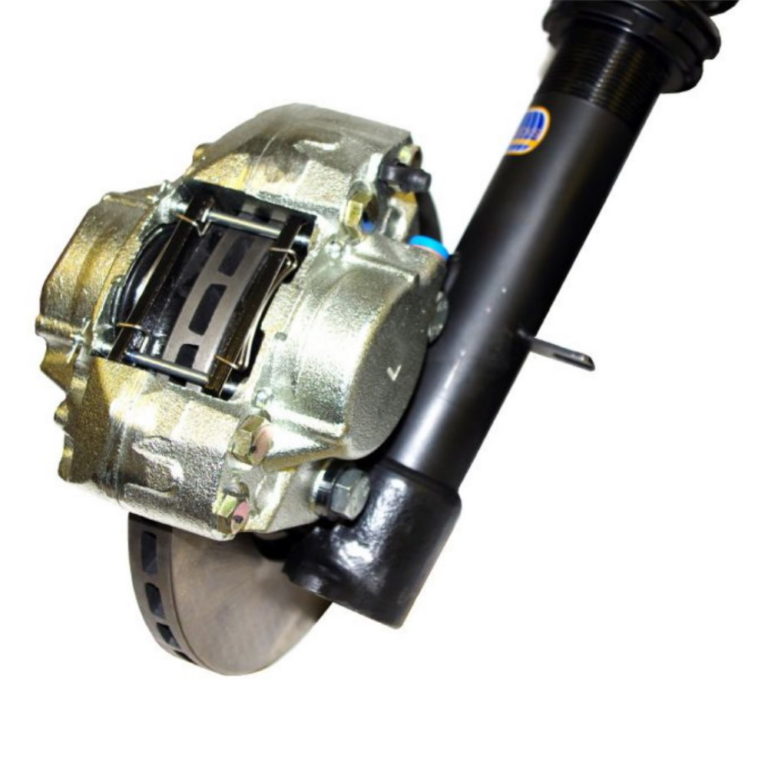

M16 Vented Disc Group 1 – Front Brake Kit

M16 vented group 1 – front brake kit

Kit Includes:

• 2 x M16 calipers.
• 2 x Vented disc 247mm x 20mm.
• 2 x Pad fitting kit.
• 4 x Caliper bolts and spacers.
• 1 x Set of Brake Pads (4 pcs) – Please select the pad type above

Upgrade from original p14 calipers and solid discs.
Can be used with rack and pinion or standard steering box set up.
Note: works with Retroford bias pedal box (BC007) (if using standard Cortina master cylinder set up Change for 0.70 item).
Note – Must be used with Retroford aluminium hubs (CS029) to give clearance for the Caliper body or with Ford 52mm deep hubs (This kit will not work with standard 45mm deep hubs).
Note – For both rack and pinion and standard steering box set up the front struts must be fitted on opposite sides of the car.
Will fit with 13″ Lotus Cortina wheels.
